MOTOR SPECIFICATION

• Voltage : 36 v - 48 v
• Power : 250 w - 350 w

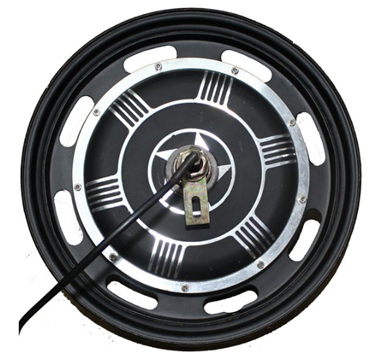

• Motor type : Brush less gear less hub motor
• Gross weight : 7.9 kg
• The tire diameter : 16*3.00 ( 12 * 3 ) / 16 * 2.75 (12 * 2.75)
• Tire width : 60 mm
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed : 36 v 300 - 400 rpm (0.38 A)
• 48 v 400 - 800 rpm (0.42 A)
• Rated speed : 300 - 800 rpm
• Rated torque: 8 - 25 NM
• Brakes : Drum Break
• Load carrying capacity : 60 Kg - 300 Kg
• Rated Efficiency : > 85%
• Noise : <50 dB
• Max speed can be achieved : 35 - 55 Km / Hr
• Constant current at Ideal Load : 15 - 30 Amp
