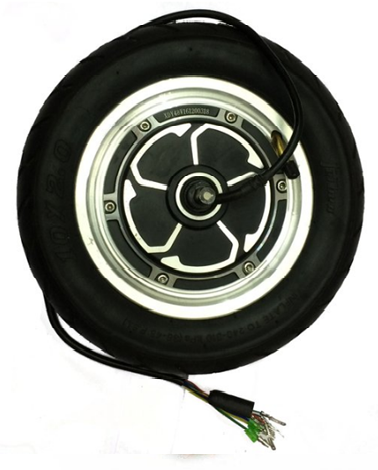

MOTOR SPECIFICATION:

• Voltage: 24 v - 36 v- 48 v
• Power: 250 w - 350 w - 500 w
• Motor type : Brush less gear less hub motor
• Gross weight : 3.8 kg
• The tire diameter : 10 inch
• Tire width : 80 mm
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed: 24 v 250 rpm (0.35 A)
• 36 v 450 rpm (0.38 A)
• 48 v 650 rpm (0.42 A)
• 60 v 800 rpm (0.61 A)
• Rated speed: 250 - 800 rpm
• Rated torque: 8-18 NM
• Brakes: Disc Break
• Load carrying capacity: 60 Kg - 180 Kg
• Rated Efficiency: > 85%
• Noise : <50 dB
• Max speed can be achieved: 30 - 40 Km / Hr
• Constant current at Ideal Load : 5-15 Ampere
